Swiss Consortium Launched The DAC+ Pilot Train

At the beginning of February, a Swiss consortium launched the DAC+ pilot train. This automated freight train is equipped with an automatic coupler, including a digital data line. Over the course of a year, various automated functions are now being put to the test.

Digitalisation and automation are making railway freight traffic intelligent. At present, processes in railway freight traffic are largely manual. This affects many different areas. For example, employees manually check each individual brake before every train departure. Coupling is also a tough physical job which has to be done outside, whatever the weather.

And once the journey is under way, the locomotive crew is partly „blind“: For example, from the driver’s cab, there is no way to check whether the train is still complete. Such activities contribute to the current staff shortage. This career profile has long been outdated. Moreover, the modernisation of railway freight is lagging in comparison with road transport. It is therefore high time to advance rail-based freight transport and thereby increase its appeal on the market.

Digitalisation makes rail-based freight services more attractive. To this end, and with the support of the BAV, an international consortium consisting of SBB Cargo, Lucerne University of Applied Sciences and Arts (HSLU), and the companies PJM, plc-tec and Voith, set up a pilot project a year ago. In doing so, the parties involved seek to promote automation and digitalisation in railway freight traffic, resulting in single-person operation, among other outcomes. The centrepiece is the recently launched digital pilot train DAC+.

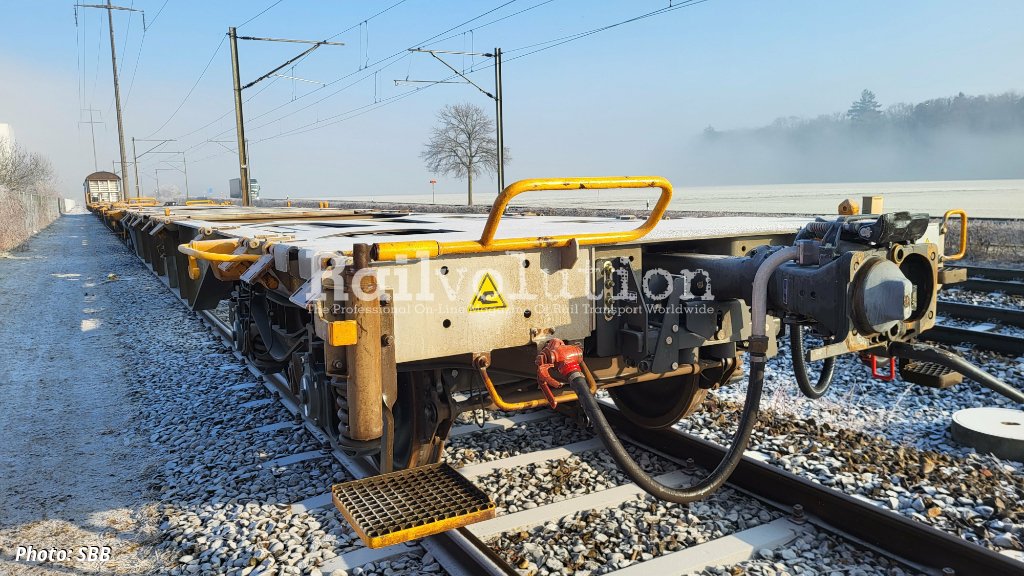

Voith’s CargoFlex automatic coupling, with its mechanical pneumatic connection, has already been in commercial use at SBB Cargo for over three years. Now the focus is on digital automatic coupling, with additional power and data connectivity along the entire convoy.

The decision to opt for a uniform type of coupling head was made by the EDDP in autumn 2021. SBB Cargo has done pioneering work, contributing significantly to this development: in previous years, and together with Voith, the company has tested and further developed the selected Scharfenberg coupling head, and is the only rail operator in Europe to have already put it into operation.

The first wagons were converted in 2019. This is an example of how the experience gained at SBB Cargo is incorporated into European specifications, norms and standards. The task at the European level is now to define the technology for data transfer.

DAC+: Data Transfer Via Power Lines

There are currently various technologies for energy and data coupling. The solutions, the system architecture of the train, and the subsystems in the DAC+ project are based on the previous results of the EDDP and the DAC4EU consortium, as well as on SBB Cargo’s preliminary work on automatic coupling and its implementation.

One of these technologies is the „Powerline PLUS Train Backbone“ (PTB) data link, which connects all wagons and the locomotive(s) via the DAC. Powerline PLUS is a wired communication technology developed by plc-tec and its research partner HSLU. The main advantage is that the data is transmitted along the power cables and plugs, so no additional data cables, electrical contacts or plugs are needed.

The second technology is Single Pair Ethernet (SPE), which does not transmit the data via the power lines but instead via separate data lines and additional electrical contacts in the DAC. An SPE solution optimised for freight services is currently still under development. As soon as such a solution becomes available, the two technologies will be compared with regard to various criteria in a specific test programme.

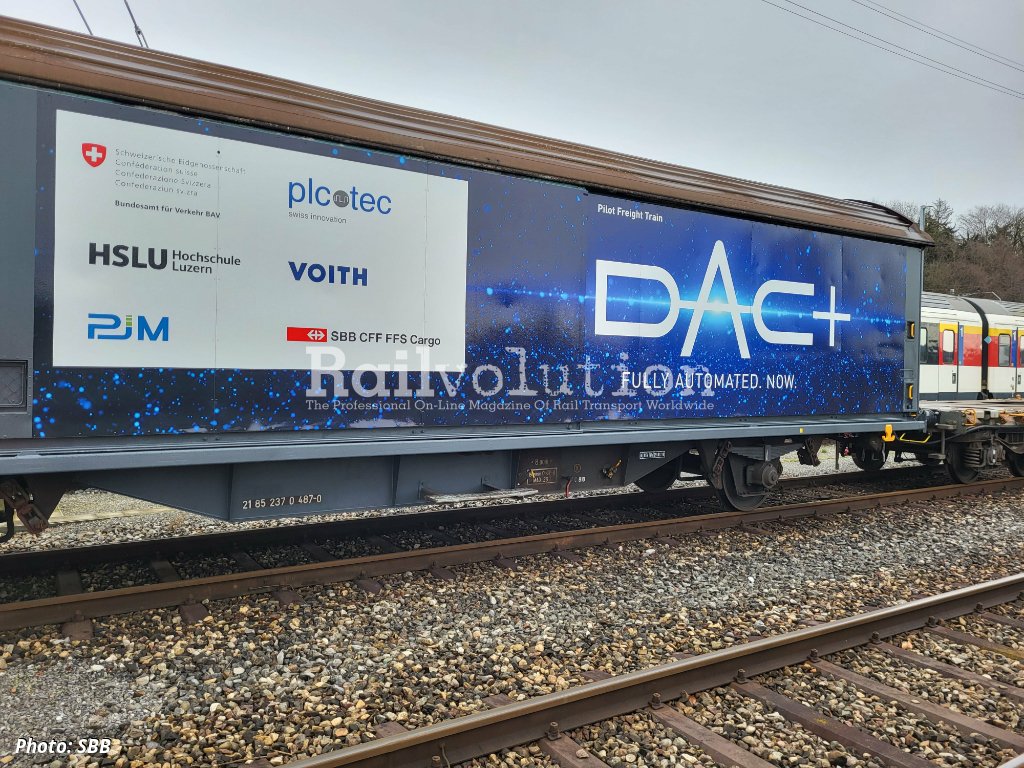

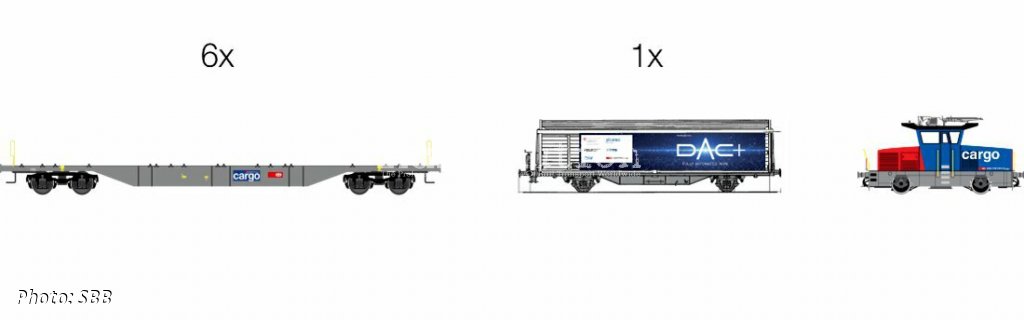

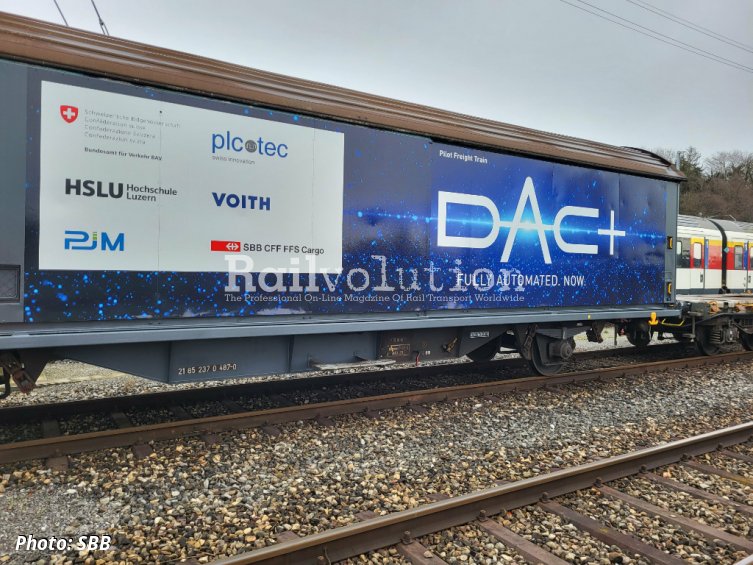

The test programme with the DAC+ pilot train includes standstill tests of the train, train runs and shunting operations. The pilot train consists of six container wagons, which function as test wagons, and a covered wagon as an emulated locomotive, integrating the power supply and the test/measurement equipment for the other wagons.

This test train is used to test the automatic applications, with the exception of the electro-pneumatic braking system. The tests will take place at various locations, as well as on journeys throughout Switzerland, until the end of 2023. The results of the project flow into the further development of the DAC at the European level.

The pilot train is thus making an important contribution to the future of railway freight traffic and to the introduction of digital automatic coupling across Europe. Because in principle, the growing volume of goods can be handled sustainably by rail – provided that railway freight traffic is modernised. This opportunity needs to be taken advantage of now.
