Optical solution for keeping railway monitoring on track

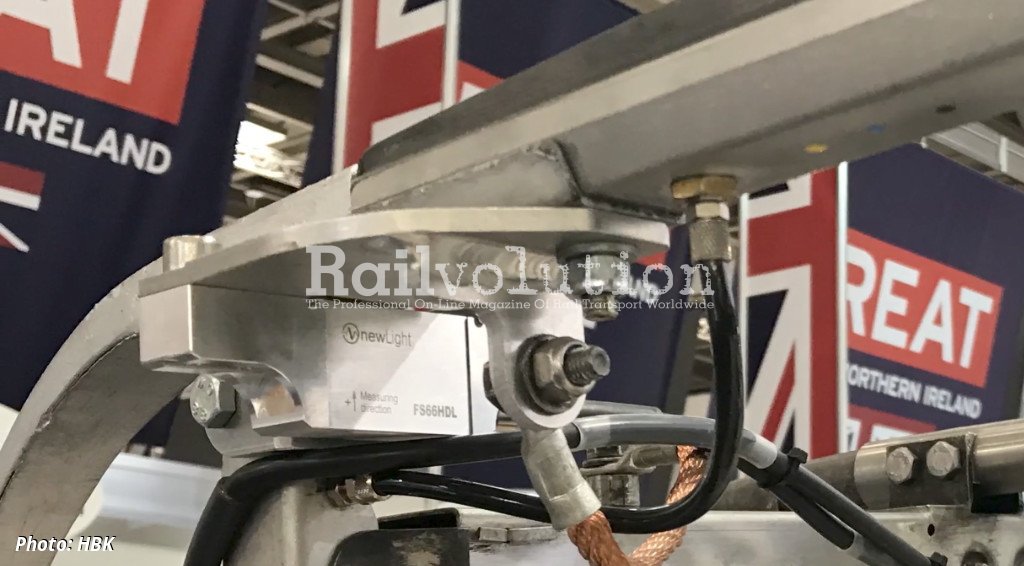

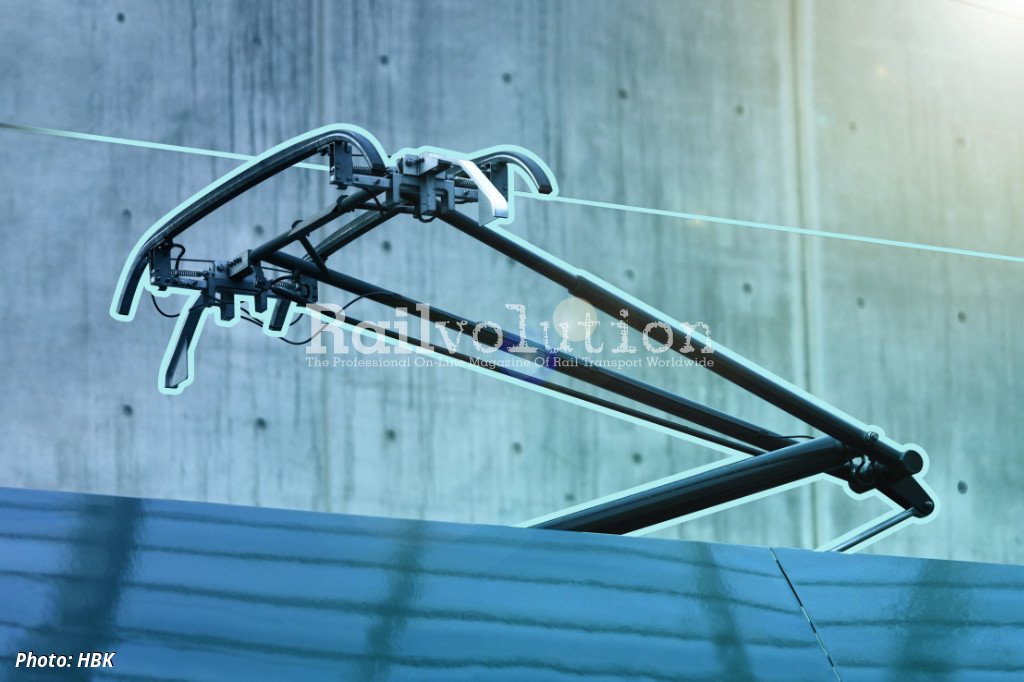

Monitoring forces and accelerations under high voltage in a pantograph structure is vital, as it reduces the risk of damage to the catenary. The correct contact between the pantograph and the overhead line is mandatory for efficient train operation. Within this high voltage environment, HBK’s FBG pantograph measurement system provides safe, continuous measurements via its fiber optic and issues instant alerts if a critical condition is detected, which can prevent unexpected delays or system shutdown.

The optical sensor is ideal for this task, as the main requirement for overhead line and pantograph monitoring are accurate measurements within a high-voltage level (15 to 25 kV). The optical sensor is a passive element, so its measurement principle is based on light and no active excitation of the sensors is required, which means there’s no interferences with other operations during measurement.

The FBG system also ensures compliance with EN 50317 standard for measuring the pantograph contact line interaction, which operators must meet to ensure minimal losses, limited wear and tear, as well as a reduced risk of disruption during the current transmission to the power unit of the vehicle.
