Continental at InnoTrans

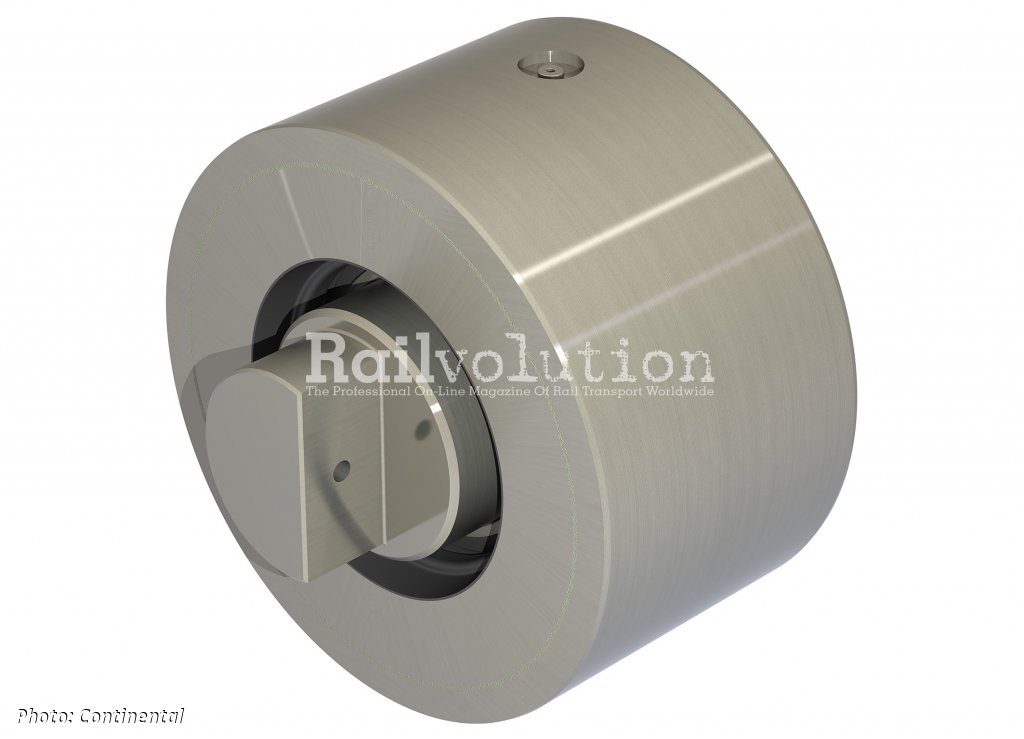

Continental has developed a new generation of hydraulic wheelset guiding bushes for bogies. These bushings can adapt the pressure that tracks assert on the wheelset significantly better than conventional hydraulic bushings. The advanced balancing of the pressure that impacts the wheelset increases the lifespan of critical train components and therefore offers an opportunity to reduce maintenance costs as servicing intervals may be prolonged and unplanned repair work can become less frequent.

At the same time, passenger comfort is increased because the impact of track-sleepers on the wheels is noticeably reduced. Continental will explain the benefits of its new hydraulic wheelset guiding bushes at InnoTrans 2024 (Hall 9, booth 400).

Differentiation between static and dynamic longitudinal stiffness is significantly higher

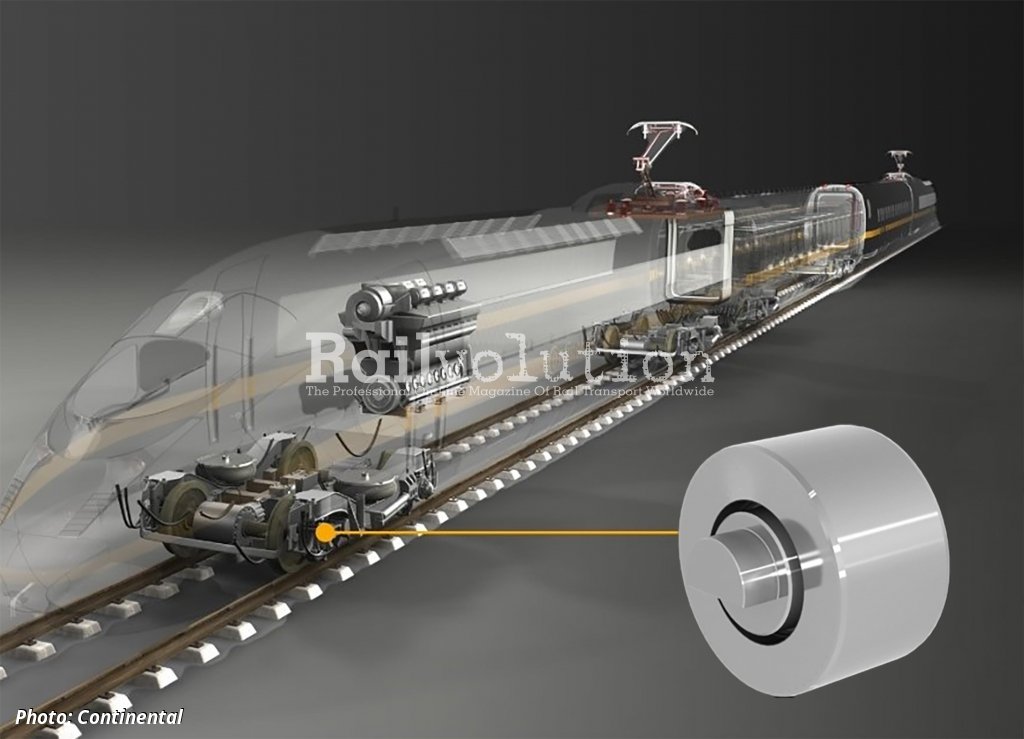

In a train’s primary suspension system, hydraulic bushes are used to connect the primary spring swingarm with the bogie. They allow for some movement and flexibility within the primary suspension system for an optimal wheelset guiding. This is crucial for adapting to track irregularities and ensuring smooth operation of the train. Hydraulic bushings are essential for the train suspension system’s ability to adapt to the very different riding modes. They can support both: situations where a rigid suspension is required, i. e. high speed on straight rides. Or, in contrast, situations that demand soft suspension, for example curves or switches at low speed.

Continental hydraulic bushings enable a differentiation between static and dynamic longitudinal stiffness that is significantly higher than that of conventional hydraulic bushings. This means that very soft wheelset guidance can be achieved in curves and pressure from the tracks is reduced. In contrast, high directional stability is demanded on the straight at high speed. Here, the optimized wheelset guidance of Continental’s solution increases the positive impact of hydraulic bushings on passenger comfort, such as less noise and softer rides.

Positive effect on maintenance cost

The increased adaptability and thus more appropriate wheelset guidance that Continental achieved through the innovative design of its new generation hydraulic bushings has a positive effect on servicing intervals and maintenance cost, too. Continental’s hydraulic wheelset guiding bushes can be retrofitted with no modification to the bogie, as they are easily attachable. This makes it easier, e.g., for train operators with challenges in the field of maintenance cost to install them in trains already in operation.
